Manual High Precision Positioner

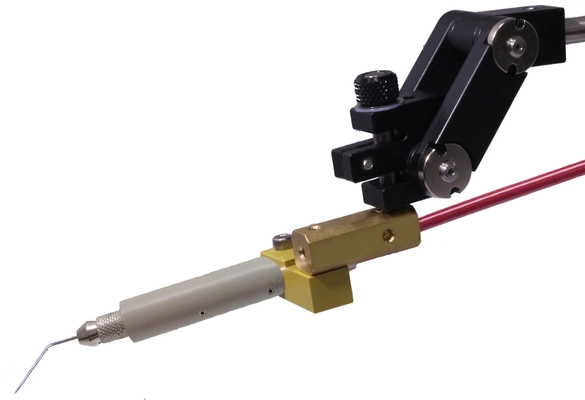

High Voltage 10KV coax probe holder with Needle-Vice tip mount and cable.
Tip with point diameter of 1µ. The rigid tungsten body can be bent and or cut, with a small flexible wire for probing delicate features and metal lines.
Tip with point diameter of 0.2µ. The rigid tungsten body can be bent and or cut, with a small flexible wire for probing delicate features and metal lines.

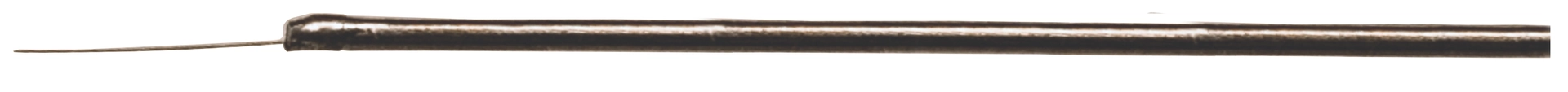

(Cat-Wisker) Tip with point diameter of 0.2µ. The rigid tungsten body can be bent and or cut, with a small flexible wire for probing delicate features and metal lines.
(Cat-Wisker) Tip with point diameter of 0.7µ. The rigid tungsten body can be bent and or cut, with a small flexible wire for probing delicate features and metal lines.

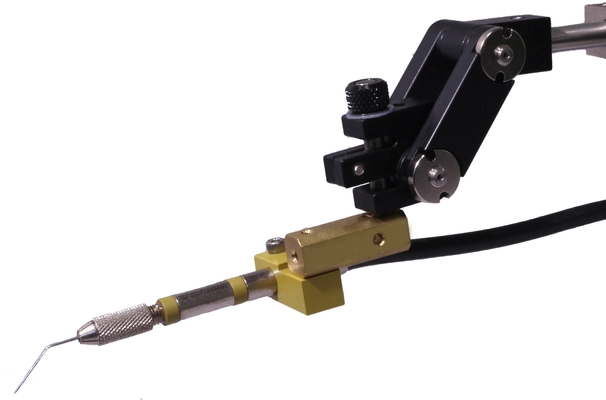

High Voltage 3KV coax probe holder with Needle-Vice tip mount and cable

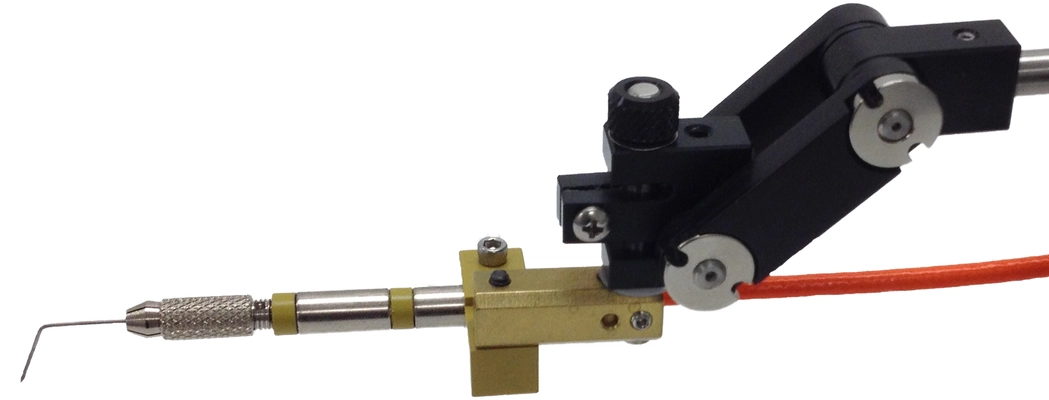

High Voltage 3KV Triax probe holder with Needle-Vice tip mount and cable.

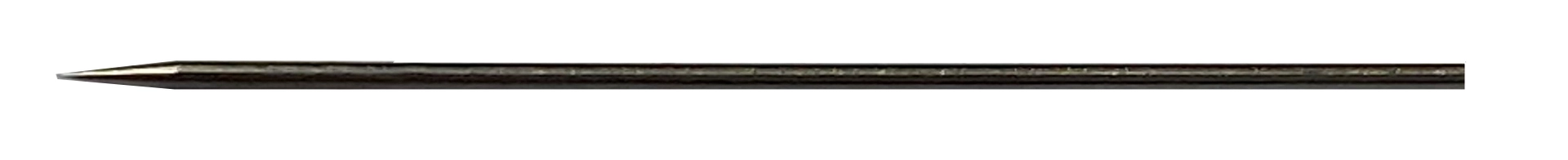

STRAIGHT TEST TIP WITH TIP DIAMETER OF 12µ, THE OSMIUM CAN BE BENT AND / OR CUT - EXCELLENT FOR HIGH POWER APPLICATIONS AND PROBING ON SOFT OR THIN MATERIALS.
STRAIGHT TEST TIP WITH TIP DIAMETER OF 12µ, THE STEEL CAN BE BENT AND / OR CUT - FOR HIGH POWER AND HARD MATERIAL PROBING APPLICATION.

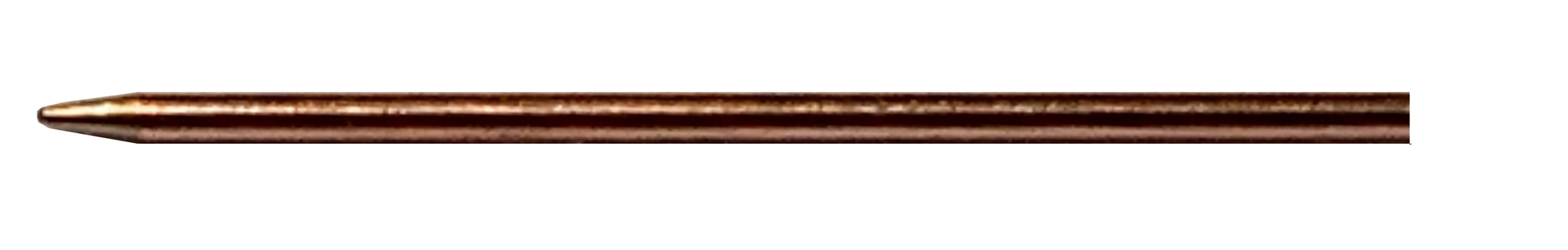

STRAIGHT TEST TIP WITH TIP DIAMETER OF 12µ, THE BERYLLIUM COPPER CAN BE BENT AND / OR CUT - EXCELLANT FOR HIGH POWER APPLICATION.
STRAIGHT TEST TIP WITH TIP DIAMETER OF 125µ, THE BERYLLIUM COPPER CAN BE BENT AND / OR CUT - EXCELLANT FOR HIGH POWER APPLICATIONS AND PROBING ON SOFT OR THIN MATERIALS.

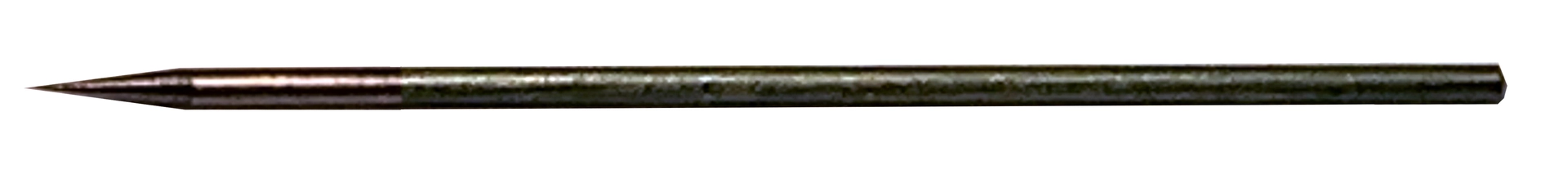

STRAIGHT TEST TIP WITH TIP DIAMETER OF 1µ, THE RIGID TUNGSTEN BODY CAN BE BENT AND / OR CUT FOR USE WITH SMALL WORKING DISTANCE OBJECTIVES.

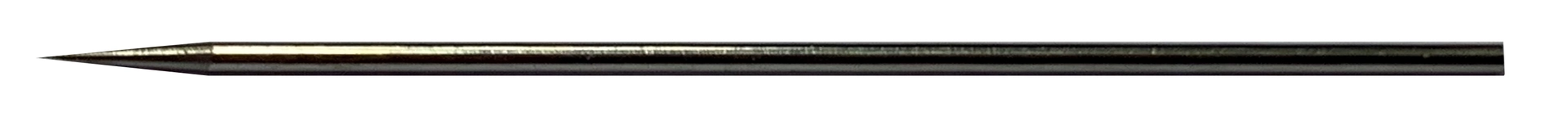

STRAIGHT TEST TIP WITH TIP DIAMETER OF 20µ, LONGER LENGTH (51mm), THE RIGID TUNGSTEN BODY CAN BE BENT AND / OR CUT FOR LOW PROFILE SETUPS
STRAIGHT TEST TIP WITH TIP DIAMETER OF 20µ, THE RIGID TUNGSTEN BODY CAN BE BENT AND / OR CUT FOR USE WITH SMALL WORKING DISTANCE OBJECTIVES.
STRAIGHT TEST TIP WITH TIP DIAMETER OF 3.5µ, THE RIGID TUNGSTEN BODY CAN BE BENT AND / OR CUT FOR USE WITH SMALL WORKING DISTANCE OBJECTIVES.

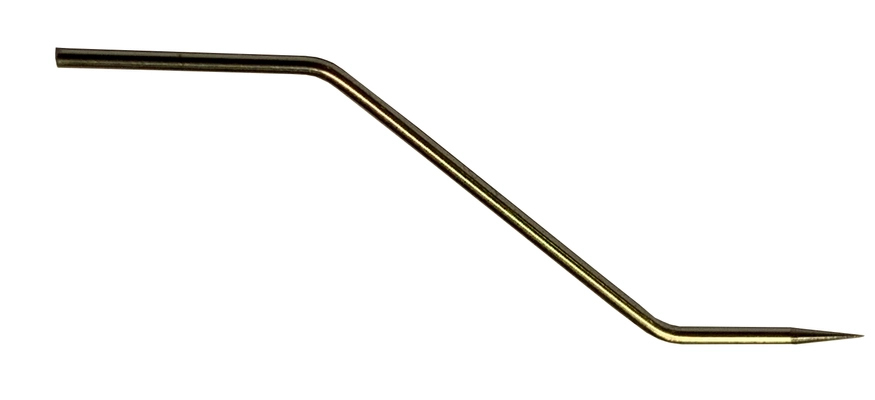

Z-SHAPE TEST TIP WITH TIP DIAMETER OF 3.5µ, THE RIGID TUNGSTEN BODY IS BENT IN A "Z" SHAPE FOR USE WITH SMALL WORKING DISTANCE OBJECTIVES.

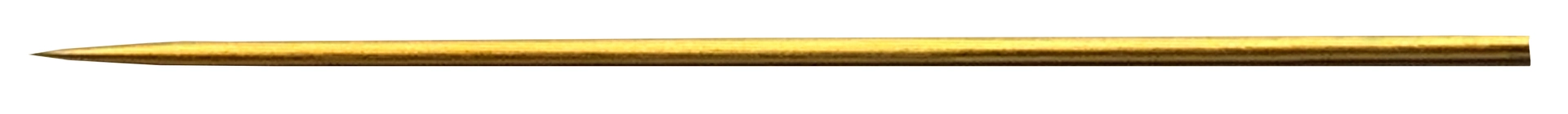

STRAIGHT TEST TIP WITH TIP DIAMETER OF 12µ, THE GOLD PLATED TUNGSTEN CAN BE BENT AND / OR CUT - EXCELLENT FOR HIGH POWER APPLICATION.

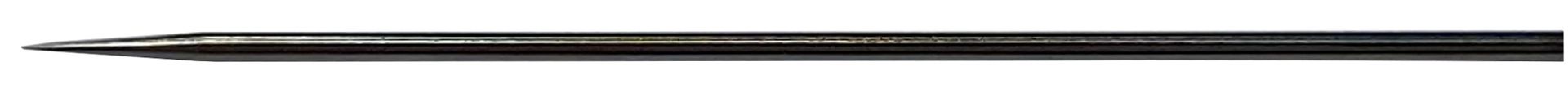

STRAIGHT TEST TIP WITH TIP DIAMETER OF 12µ, THE TUNGSTEN CARBIDE CAN BE BENT AND / OR CUT - FOR HIGH POWER AND HARD MATERIAL PROBING APPLICATION.
THE S-M90 MICROPOSITIONER IS SPECIFICALLY DESIGNED FOR RF PROBING, INCLUDES INDEPENDANT X-Y-Z-THETA AXES KNOBS-N,S,E,W ORIANTATION.
STRAIGHT TEST TIP WITH TIP DIAMETER OF 25µ, THE RIGID TUNGSTEN BODY CAN BE BENT AND / OR CUT FOR USE WITH SMALL WORKING DISTANCE OBJECTIVES.

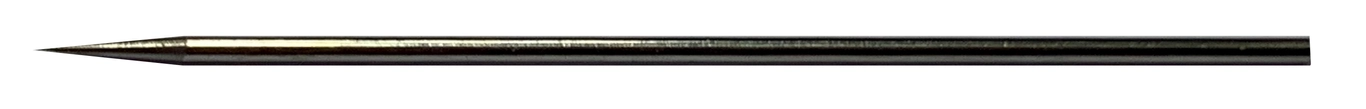

STRAIGHT TEST TIP WITH TIP DIAMETER OF 20µ, LONG LENGTH SHAFT OF 50.1MM, THE RIGID TUNGSTEN BODY CAN BE BENT AND / OR CUT FOR USE WITH SMALL WORKING DISTANCE OBJECTIVES.

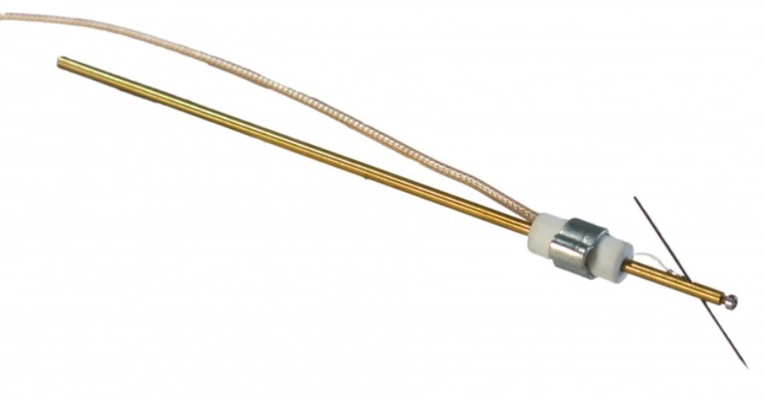

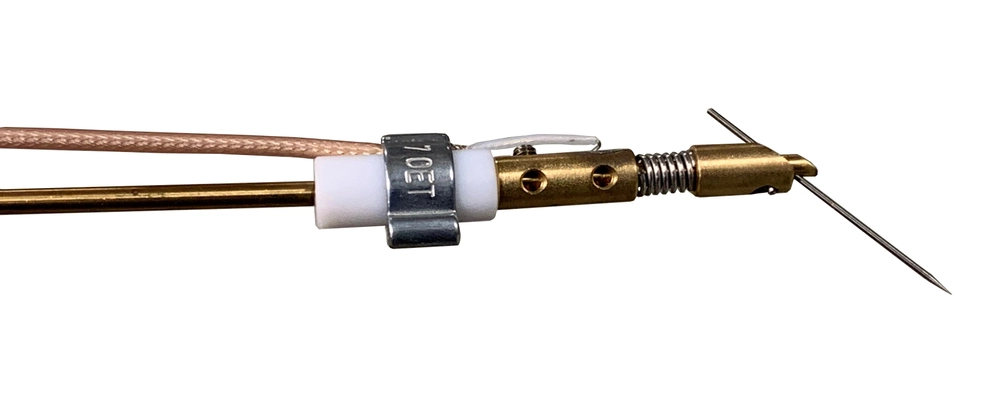

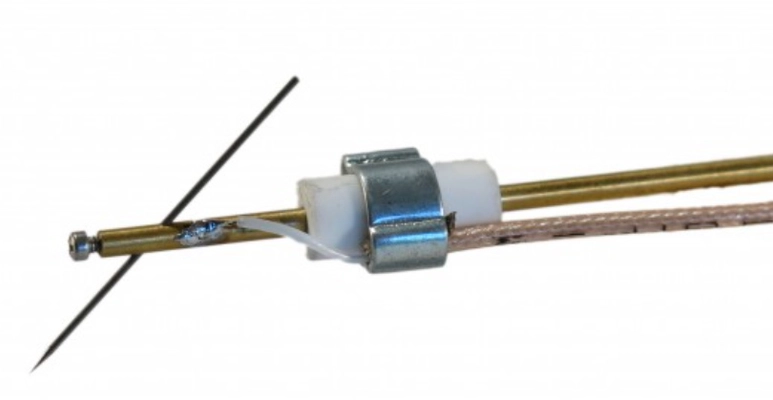

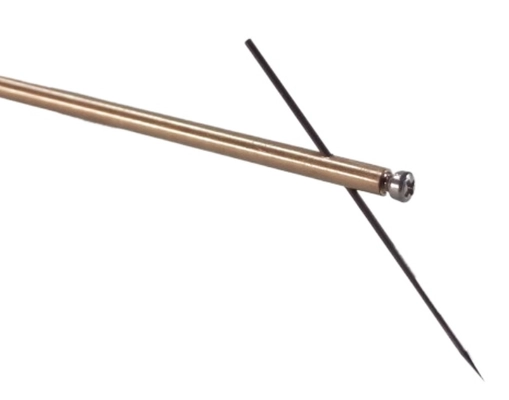

Universal series probe tip holder comes in one universal length of 4.75". This holder is made to be bent or cut to length by the customer.

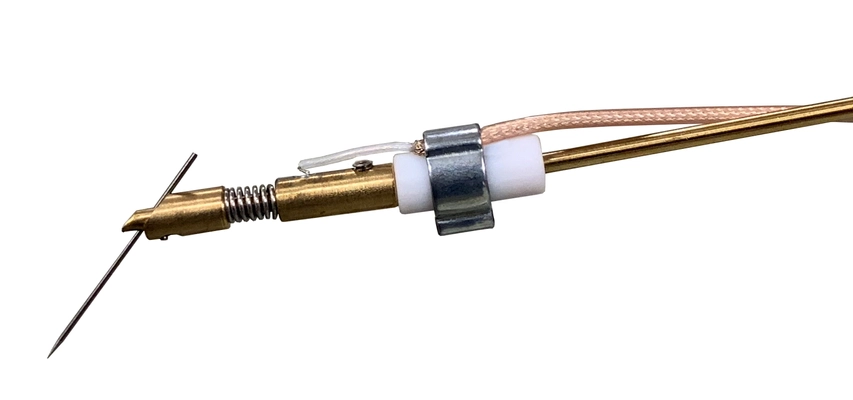

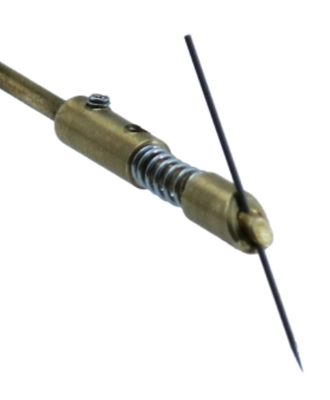

Universal probe tip holder comes in one length of 4.75". This holder is made to be bent or cut by the customer.

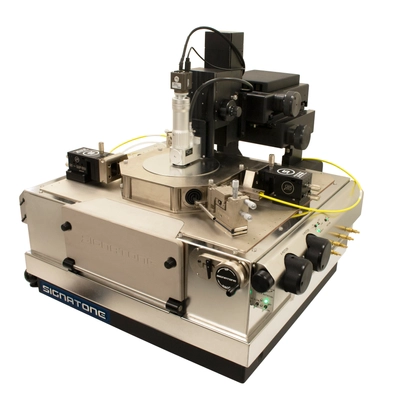

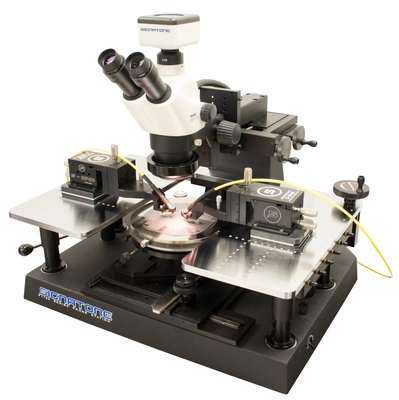

WL-210-LE PROBE STATIONS FOR RELIABLE,-ACCURATE RF/DC/CV,AND HIGH-POWER THERMAL TEST MEASUREMENTS
CERAMIC ISOLATED <25fA COAX PROBE & HOLDER
STRAIGHT TEST TIP WITH TIP DIAMETER OF 12µ, THE PALLADIUM CAN BE BENT AND / OR CUT - EXCELLENT FOR HIGH POWER AND LOW LEAKAGE APPLICATIONS.
Z-SHAPE TEST TIP WITH TIP DIAMETER OF 1µ, THE RIGID TUNGSTEN BODY IS BENT IN A "Z" SHAPE FOR USE WITH SMALL WORKING DISTANCE OBJECTIVES.
Z-SHAPE TEST TIP WITH TIP DIAMETER OF 5µ, THE RIGID TUNGSTEN BODY IS BENT IN A "Z" SHAPE FOR USE WITH SMALL WORKING DISTANCE OBJECTIVES.
STRAIGHT TEST TIP WITH TIP DIAMETER OF 5µ, THE RIGID TUNGSTEN BODY CAN BE BENT AND / OR CUT FOR USE WITH SMALL WORKING DISTANCE OBJECTIVES.
LOW LEAKAGE ISOLATED <10fA COAX PROBE & HOLDER
DOUBLE TIP AVAILABLE FROM 5µ TO 12.5µ WITH SPACING OF 12.5µ TO 100µ
Economical - reliable and accurate test measurements of RF/DC/CV/High Power, MEMS,...devices.

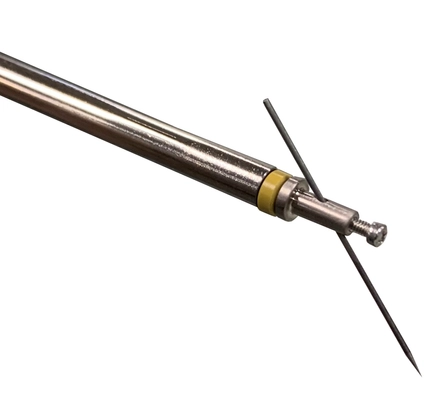

Very low-leakage, isolated 2fA triaxial probe holder with Screw Lock.
Low leakage, Teflon isolated, 1pA coaxial probe tip holder with Screw Lock.
Low leakage, Ceramic isolate, high temperature, coaxial probe tip holder with Screw Lock.
Low leakage, delrin isolated, 10pA probe holder with Spring Clip.
Low leakage, Teflon isolated 1pA coaxial probe tip holder with Spring Clip.
Low Leakage ceramic isolated, high temperature, coaxial probe holder with Spring Clip.
Low leakage- Delrin isolated, 10pA coaxial probe tip holder with Screw Lock.

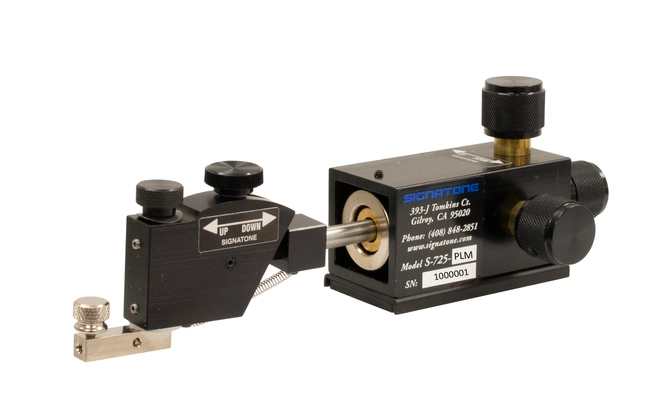

X-Y-Z ECONOMIC MICROPOSITIONER WITH 3 CONTROLS KNOBS, THE S-725 WILL ALLOW EASY LANDING ON PADS AND INTERNAL MICRON LINES .

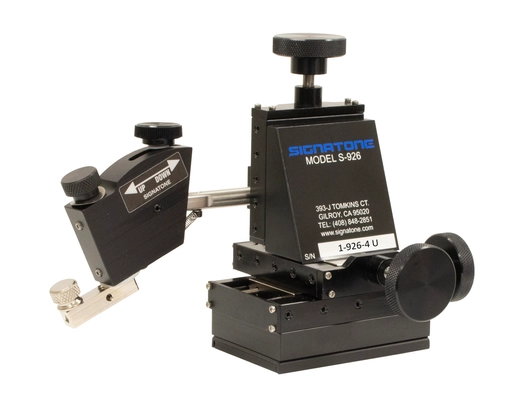

STABLE 3-AXIS LEANEAR DIRECTION CONTROL MICROPOSITIONER WITH INDEPENDANT CONTROL KNOBS, .

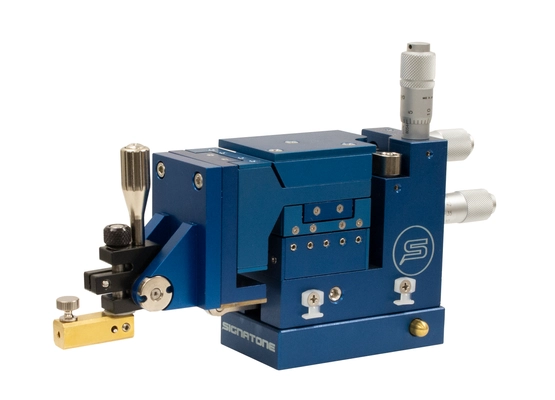

Ultra-Stable micropositioner with inline control knobs, The SP-100 allows for easy probing on pads as well as internal lines with sub-micron accuracy.

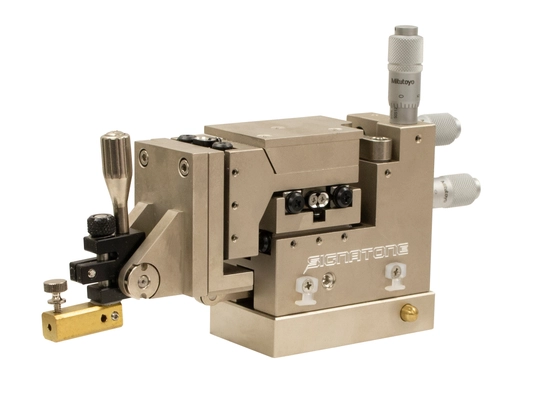

High-precision micropositioner with inline control knobs, The SP-150 allows for easy probing on pads as well as internal lines with sub-micron accuracy.
100MM, 150MM,200MM MANUAL PROBE SYSTEM DESIGNED FOR RELIABLE AND ACCURATE ANALYTICAL TESTING OF DC, CV-IV, AND HIGH-POWER APPLICATIONS
