Manual-Stations

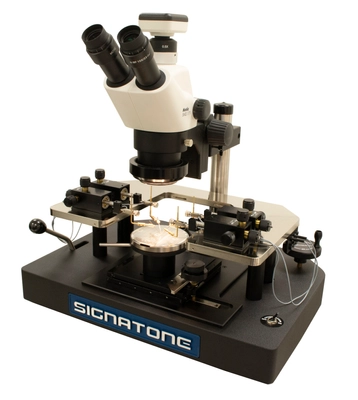

H-150

Economic Manual Prober
H-150 5mm-100mm Manual Probe System Economically Designed for reliable and Accurate Analytical Testing of DC, CV-IV Applications

SE-20TB

20µ TUNGSTEN PROBE TIPS
STRAIGHT TEST TIP WITH TIP DIAMETER OF 20µ, THE RIGID TUNGSTEN BODY CAN BE BENT AND / OR CUT FOR USE WITH SMALL WORKING DISTANCE OBJECTIVES.

SE-20TZ

Z-SHAPE TUNGSTEN PROBE TIPS
Z-SHAPE TEST TIP WITH TIP DIAMETER OF 3.5µ, THE RIGID TUNGSTEN BODY IS BENT IN A "Z" SHAPE FOR USE WITH SMALL WORKING DISTANCE OBJECTIVES.

S-M90

MANUAL RF MICROWAVE MICROPOSITIONER
THE S-M90 MICROPOSITIONER IS SPECIFICALLY DESIGNED FOR RF PROBING, INCLUDES INDEPENDANT X-Y-Z-THETA AXES KNOBS-N,S,E,W ORIANTATION.

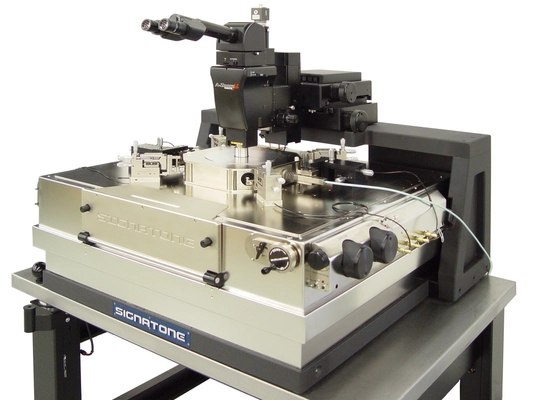

WL-310-LE

300MM MANUAL RF-DC PROBE SYSTEM WITH LOCAL ENCLOSURE
300mm manual probe station for reliable and accurate RF/DC/CV/High Power , thermal test measurements.

WL-210-LE

WL-210-LE MANUAL PROBE SYSTEM WITH LOCAL ENCLOSURE
WL-210-LE PROBE STATIONS FOR RELIABLE,-ACCURATE RF/DC/CV,AND HIGH-POWER THERMAL TEST MEASUREMENTS

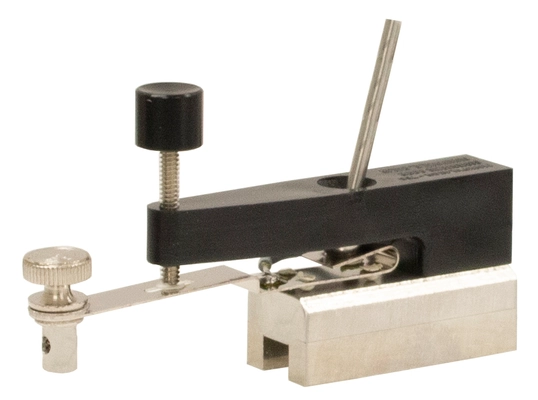

S-750

Economic 3 Axis Micropositioner
ECONOMIC MICROPOSITIONER WITH 3-AXIS CONTROL MOVEMENT, JOYSTICK X-Y MOVEMENT & "Z" KNOB. DESIGNED FOR PAD PROBING

WL-210

WL-210 HIGH PRECISION MANUAL RF PROBE STATION
WL-210 PROBE STATIONS FOR RELIABLE,-ACCURATE RF/DC/CV,AND HIGH-POWER TEST MEASUREMENTS

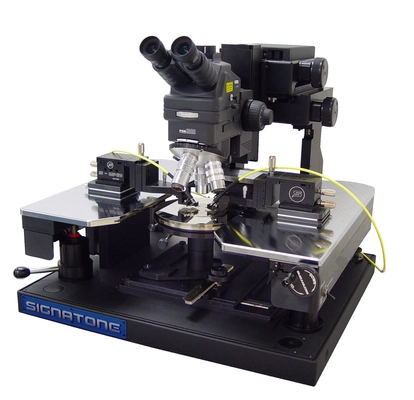

WL-170

WL-170 HIGH STABILITY MANUAL RF PROBE STATION
WL-170 PROBE STATIONS FOR RELIABLE,-ACCURATE RF/DC/CV,AND HIGH-POWER TEST MEASUREMENTS

WL-1160

WL-1160 MULTI-PURPOSE MANUAL RF PROBE STATION
Economical - reliable and accurate test measurements of RF/DC/CV/High Power, MEMS,...devices.

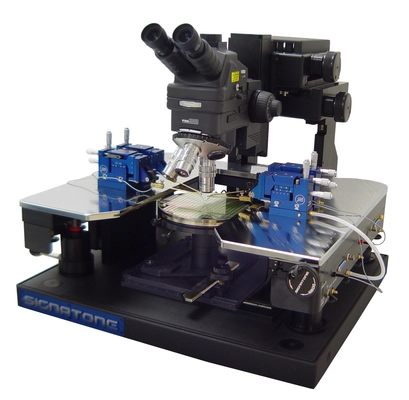

CM-170

CHECKMATE HIGH STABILITY MANUAL ANALYTICAL PROBE STATION
FOR RELIABLE,-ACCURATE "CV /IV, DC & HIGH POWER MEASUREMENT ANALYSIS

S-725

X-Y-Z ECONOMIC MICROPOSITIONER
X-Y-Z ECONOMIC MICROPOSITIONER WITH 3 CONTROLS KNOBS, THE S-725 WILL ALLOW EASY LANDING ON PADS AND INTERNAL MICRON LINES .

S-926

PRECISISION X-Y-Z 100TPI MICROPOSITIONER
STABLE 3-AXIS LEANEAR DIRECTION CONTROL MICROPOSITIONER WITH INDEPENDANT CONTROL KNOBS, .

SP-150

HIGH PRECISION IN-LINE X-Y-Z MICROPOSITIONER
High-precision micropositioner with inline control knobs, The SP-150 allows for easy probing on pads as well as internal lines with sub-micron accuracy.

S-1160

MULTI-PURPOSE MANUAL PROBE STATION
100MM, 150MM,200MM MANUAL PROBE SYSTEM DESIGNED FOR RELIABLE AND ACCURATE ANALYTICAL TESTING OF DC, CV-IV, AND HIGH-POWER APPLICATIONS

CM-210

CHECKMATE 200MM HIGH PRECISION MANUAL PROBE STATION
FOR RELIABLE AND ACCURATE DC, CV/IV, HIGH POWER & RF TEST MEASUREMENTS

SMZ-171

STEREO ZOOM LOW POWERED MICROSCOPE
STEREOZOOM SCOPE WITH 6.7:1 ZOOM, LED ILLUMINATION, EYEPIECES, TRINOCULAR HEAD, CAMERA PORT WITH LONG WORKING DISTANCE

S-S12Z

HIGH POWER MONO ZOOM VIDEO SCOPE
LOW TO HIGH MAG 1X-12X ZOOMING SCOPE WITH LONG WORKING DISTANCE AND CAMERA PORT

A-ZOOM MICRO

HIGH POWER MONO ZOOM VIDEO SCOPE
LOW TO HIGH MAG 1X-7X ZOOMING SCOPE WITH LONG WORKING DISTANCE CAMERA PORT AND OPTIONAL EYEPIECES

MT

HIGH POWER MICROSCOPE
HIGH POWER MICROSCOPE WITH 4 OBJECTIVE TURRIT, CAMERA MOUNT, AND FIBER OPTIC ILLUMINATION

S-1080

FULL TEMPERATURE RANGE THERMAL CHUCK CONTROLLER
THERMAL CHUCK CONTROLLER FOR A VERIETY OF TEMPERATURE PROBING APPLICATIONS
Applications

DC- CV/IV Analytical Probing
Resistivity Testing
High Power Characterization
RF – Microwave Test Solutions
Thermal Characterization
