PROBE HOLDERS/ CERAMIC ISOLATED COAX

Part Number

UPGB

Title

PROBE HOLDERS/ CERAMIC ISOLATED COAX

Applications

CV/IV Measurements & Failure Analysis
Low Current Analysis
Manual Analytical Probing
Thermal Characterization

Description

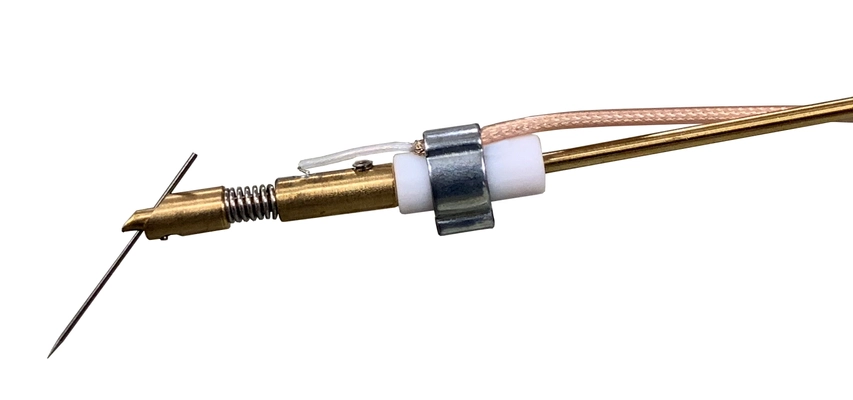

LOW LEAKAGE CERAMIC ISOLATED, HIGH TEMP, COAX PROBE HOLDER
COAXIAL TIP HOLDER WITH CERAMIC ISOLATION AND SPRING CLIP MOUNT, SPECIFICALLY DESIGNED FOR LOW NOISE MEASUREMENTS AT EXTREME TEMPERATURES.

Documents
Technical Specifications
LEAKAGE CURRENT
pA
MATERIAL
BRASS
DIAMETER
2.2mm
LENGTH
120mm
CABLE LENGTH
60.96cm
CONNECTION
BNC COAX
ISOLATOR
CERAMIC
WIRE
RG178 MINI COAX
TEMPERATURE
+25°C TO +300°C
TIP MOUNT
SPRING CLIP
