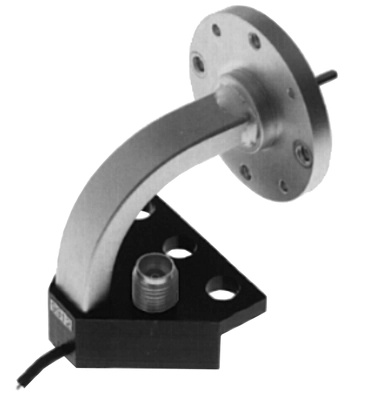

33 GHZ – 50 GHZ Millimeter Wave Probe Head

Part Number

SP-50BT

Title

33 GHZ – 50 GHZ Millimeter Wave Probe Head

Applications

HF & RF Microwave Probing
DC To THz Probe Head Selection
Frequency Extenders and Tuners
Millimeter Wave Probing

Description

A range of probes for millimeter applications from 33 to 50GHz, in GSG, GS or SG configurations•
These probes are available for different spacings (pitch) from 50µm to 450µm • Recommendation for a GSG configuration for better performance • Low loss and low dispersion , low resistance contact • WR-22 waveguide, optional Bias T • Available in BeCu

Documents
Technical Specifications
FREQUENCY
33 GHz to 50 GHz
CONFIGURATION
GSG, GS, SG
PITCH
50 to 450 µm
PITCH
BeCu
MOUNTING
3 hole standard
INSERTION LOSS
1db MAX
RETURN LOSS
15db MAX
MEASUREMENT REPEATABILITY
-55db
