HIGH VOLTAGE 3KV TRIAX PROBE HOLDER

Part Number

HPV-TX-3

Title

HIGH VOLTAGE 3KV TRIAX PROBE HOLDER

Applications

High Voltage Probe Arms
Measurements
Probe Stations

Description

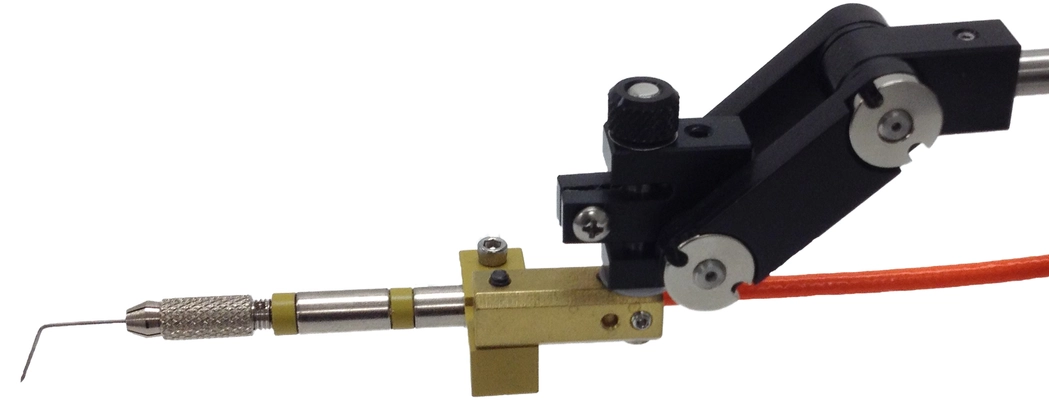

HIGH VOLTAGE 3KV TRIAX PROBE HOLDER
PROBE HOLDER FOR HIGH VOLTAGE APPLICATIONS. THE HVP-TX-3 COMES WITH A HV TRIAX CONNECTOR AND TRIAX CABLE FOR UP TO 3KV OPERATION. A NEEDLE VISE AT THE TIP OF THE HOLDER HOLDS NEEDLE SE-CURELY BY AN EASY TWISTING OPERATION.

Documents
Technical Specifications
VOLTAGE
3KV
CURRENT
120mA DC
LEAKAGE CURRENT
<1pA@3kV, <100fA@10V
CABLE LENGTH
1.5m
CONNECTION
HV TRIAX
TEMPERATURE
-55°C to +300°C
TIP MOUNT
NEEDLE VICE
