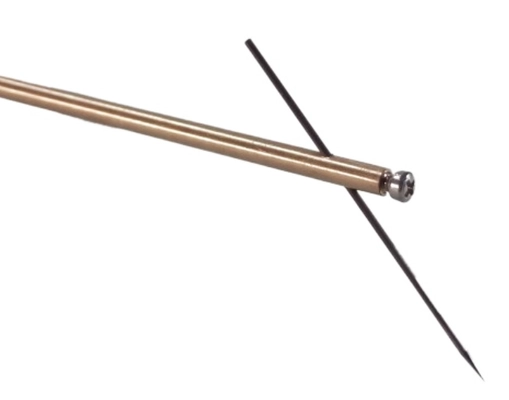

PROBE HOLDER WITH SCREW-LOCK PROBE TIP CONNECTION

Part Number

U-S

Title

PROBE HOLDER WITH SCREW-LOCK PROBE TIP CONNECTION

Applications

CV/IV Measurements & Failure Analysis
Manual Analytical Probing
MEMS Probing

Description

“U” SERIES PROBE TIP HOLDER COMES IN ONE UNIVERSAL LENGTH OF 4.75”. THIS HOLDER IS MADE TO BE BENT OR CUT TO LENGTH BY THE CUSTOMER

“S” OR SCREW-LOCK OPTION PROBE TIP MOUNT ALLOWS FOR EASY TIP REPLACEMENT

Documents
Technical Specifications
LEAKAGE CURRENT
1µA
MATERIAL
BRASS
DIAMETER
2.2mm
LENGTH
120mm
MAX TIP DIAMETER
0.6mm
CONNECTION
VIA MICROPOSITIONER
MAX TEMPERATURE
+600°C
TIP MOUNT
SCREW-LOCK
