FULL TEMPERATURE RANGE THERMAL CHUCK CONTROLLER - Signatone

FULL TEMPERATURE RANGE THERMAL CHUCK CONTROLLER

s-1080-controller

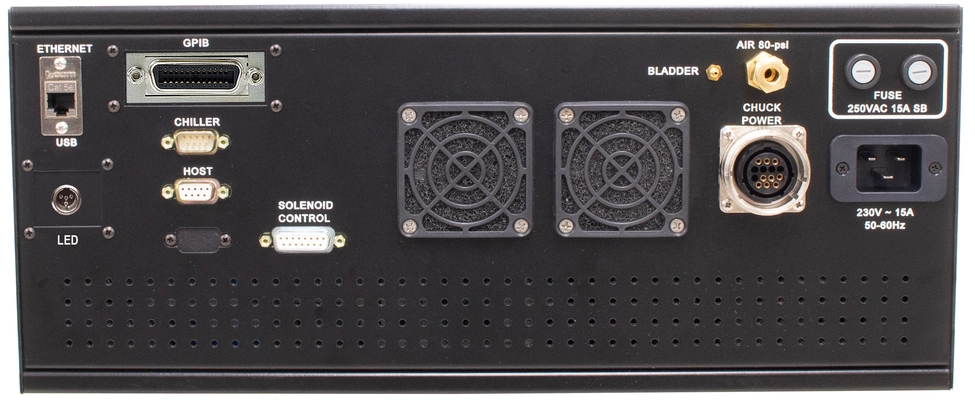

s-1080-conection

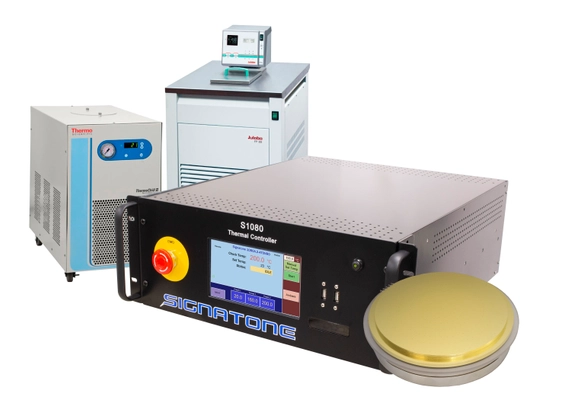

s-1080-accessories

Part Number

S-1080

Title

FULL TEMPERATURE RANGE THERMAL CHUCK CONTROLLER

Applications

CV/IV Measurements & Failure Analysis

Thermal Characterization

Thermal Coefficient of Resistance (TCR) Testing

Description

THE S-1080 THERMAL CHUCK CONTROLLER ALLOWS FULL TEMPERATURE CHARACTERIZATION OF DEVICES IN A TEMPERATURE RANGE BETWEEN -60°C AND + 300° C INCLUDING A VERIETY OF CHUCK CONFIGURATIONS.
FRONT PANEL TOUCH SCREEN, GPIB, OR TCP/TCIP CONTROL
RAMPING SPEED CONTROL
QUICK TRANSITION TIMES BETWEEN SET TEMPERATURES

Documents

Technical Specifications

THERMAL CHUCKS

100MM, 150MM, 200MM, AND 300MM

TEMPERATURE RANGES

-60°C TO + 200° C,-25°C TO + 200° C, +20°C TO + 200° C, +20°C TO + 300° C, +20°C TO + 550° C

RESOLUTION

0.1° C or 1° C

CHUCK CONFIGURATIONS

TRIAX, COAX, LOW CURRENT, HIGH POWER,…
